NEO FRESNAL

A powerful zoom lens spotlight

Adjustable zoom-lens and barndoors allows good control of the light

Fits all known 3-phase circuit tracks

Smooth straight line dimming curve from 0-100%



Description

  • Neo Fresnal is developed for use in museums and art galleries
  • Every fixture can individually handle all changable variables of the light
  • Beam angle is adjustable 16-64° with the focus knob on the back of the luminaire
  • A potentiometer on the adapter allows for easy adjustment of brightness

In addition to the analog and DMX series of NEO, a DALI track version is available

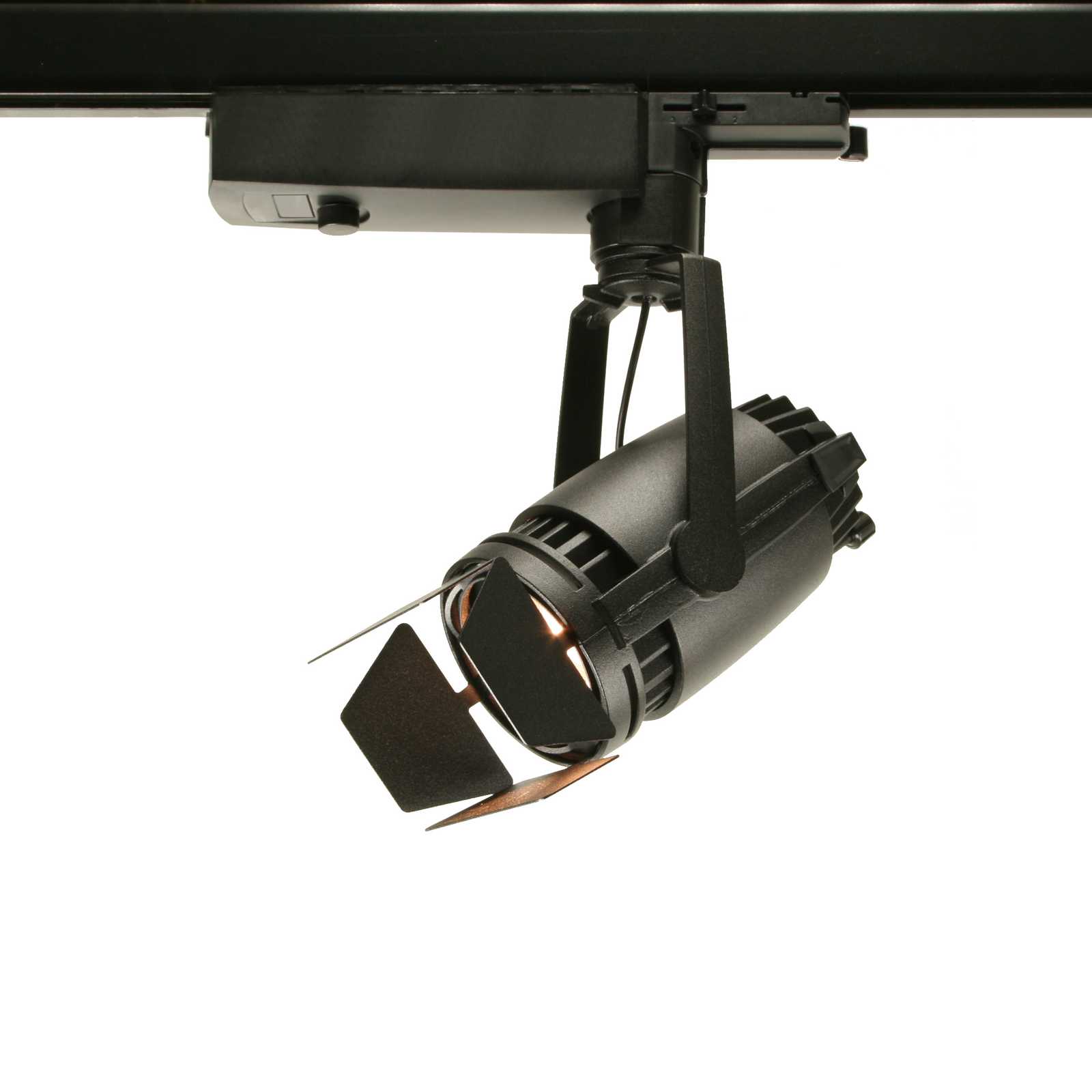

Neo fresnal

TECHNICAL SPECIFICATION

Material Lamp housing of die-cast magnesium
Adapter housing of PBT/PC 10 GF
Aspheric fresnel lens of polycarbonate
Finish Gray (RAL 9006)
Black (RAL 9005)
White (RAL 9016)
System 3-phase circuit track (eg Global Trac, Erco, Zumbotel, iGuzzini, Eutrac and Hoffmeister)
Dimming control Integrated manual dimmer 0-100%
DMX via Lumenradio DMX
DALI version (only for Global Trac PULSE track system or equivalent)

Not compatible with mains dimmer
Protection class IP20
230V ~ 53/60Hz
Power consumption 27W
CRI 95
Color temperature 2700K/3000K/4000K
Beam angle 16-64°
Swivels >365°
Tilts >90°
Features Filter holder, phase selector, lockable pan/tilt
Accessories Barn doors, filter pack
Arty Profile Zoom diagramArty Profile Zoom diagram
